Einige Gasphasenspektren

Auflösung: 1cm-1 (FT-IR)
optischer Bereich: 650-4000
cm-1* (KBr-Fenster)
Bedingungen: ~ 22°C / Atmosphärendruck
Apodisation: Happ-Genzel
Schichtdicke: d=10m (Ausnahme CH3Br und N2O mit d=100mm)

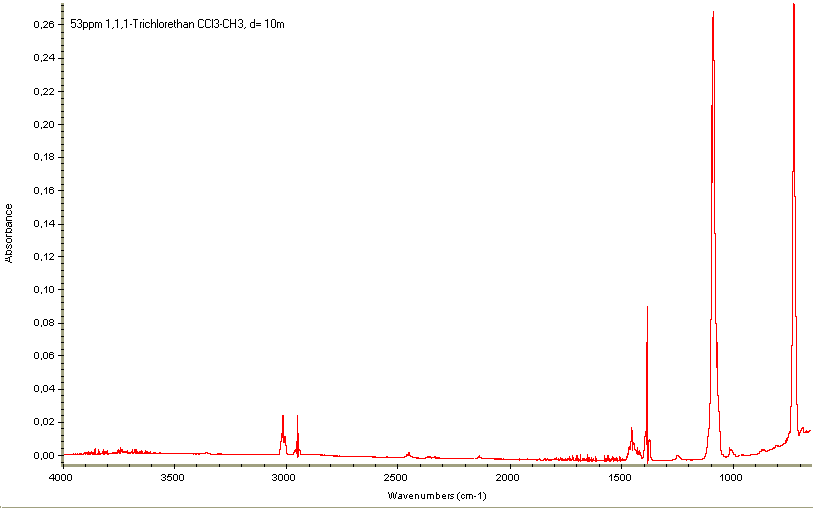

1,1,1-Trichlorethan - C2H3Cl3
1,1,1-Trichlorethan

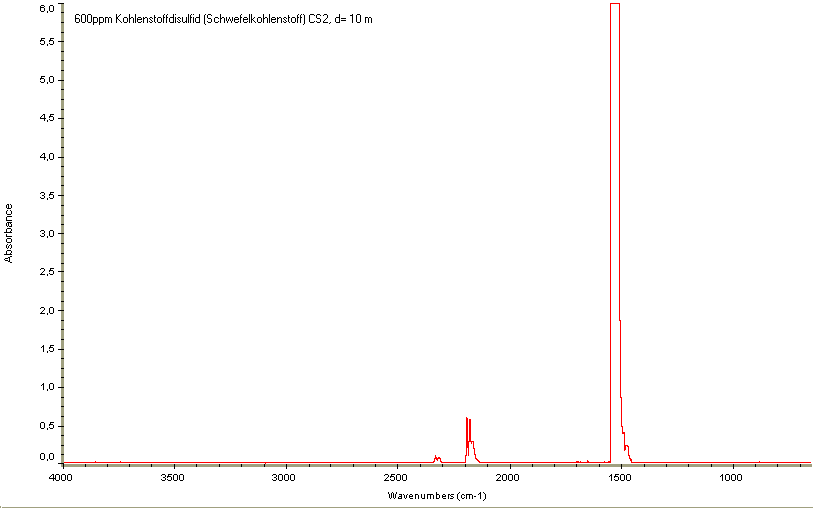

Kohlenstoffdisulfid (Schwefelkohlenstoff) - CS2

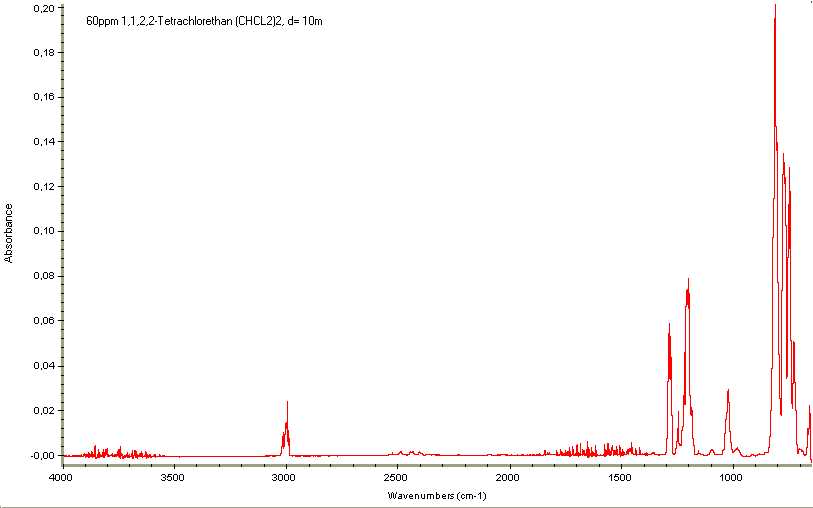

1,1,2,2-Tetrachlorethan - C2H2Cl4
Methan - CH4
2-Methyl-2-propanthiol
Methanol (Methylalkohol) - CH3OH
Acrolein (Propenal)
Methylbromid (Brommethan) - CH3Br

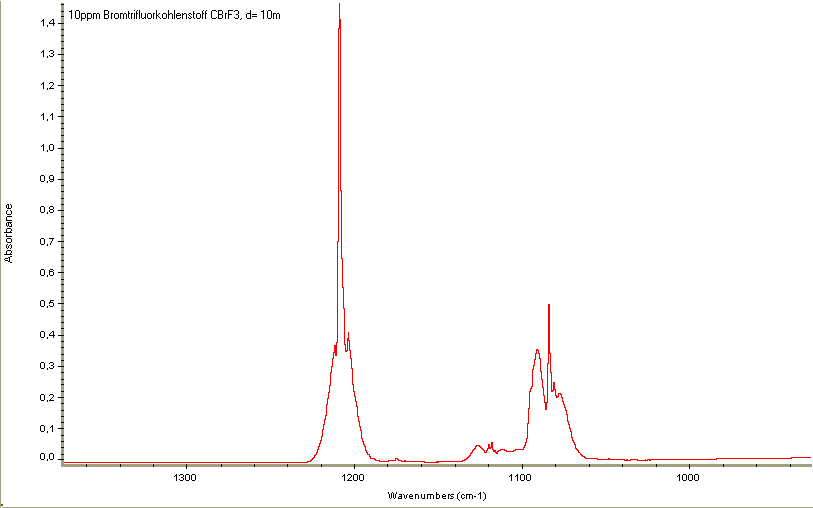

Bromtrifluorkohlenstoff - CBrF3
Methylpropen (Isobuten) - i-C4H8
n-Butanol - C4H10O
Pentanon-2
Chlordifluormethan - CHClF2
Schwefelhexafluorid - SF6

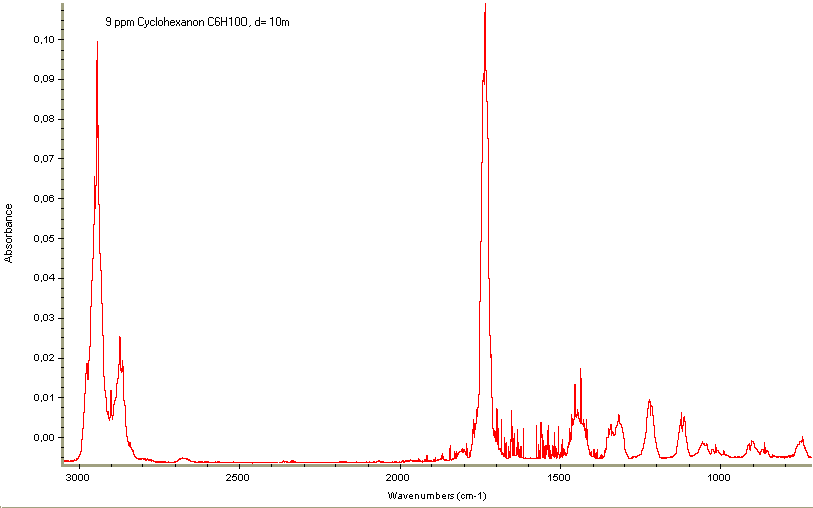

Cyclohexanon
Stickstoffdioxid - NO2
Dimethylsulfid (Dimethylthioether) - C2H6S
Tetrachlormethan (CCl4) 0,8ppm & 95ppm

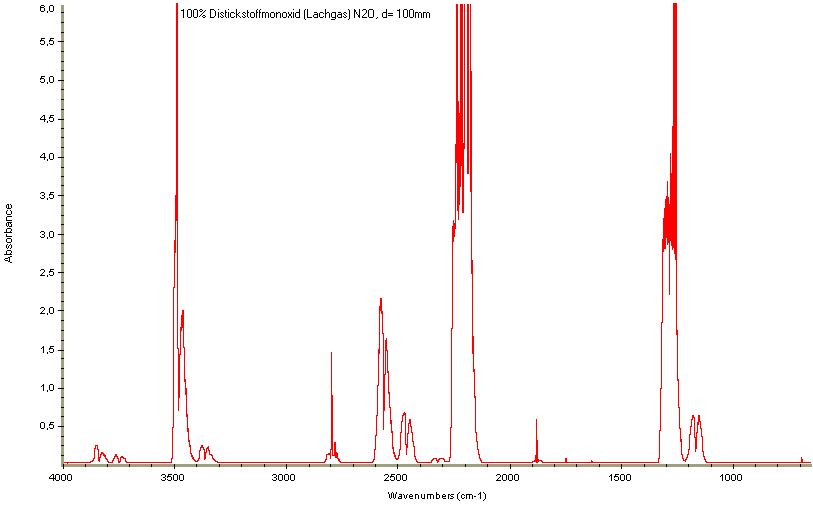

Distickstoffmonoxid (Lachgas) - N2O
Tetrafluormethan - CF4
Isopropanol (2-Propanol)

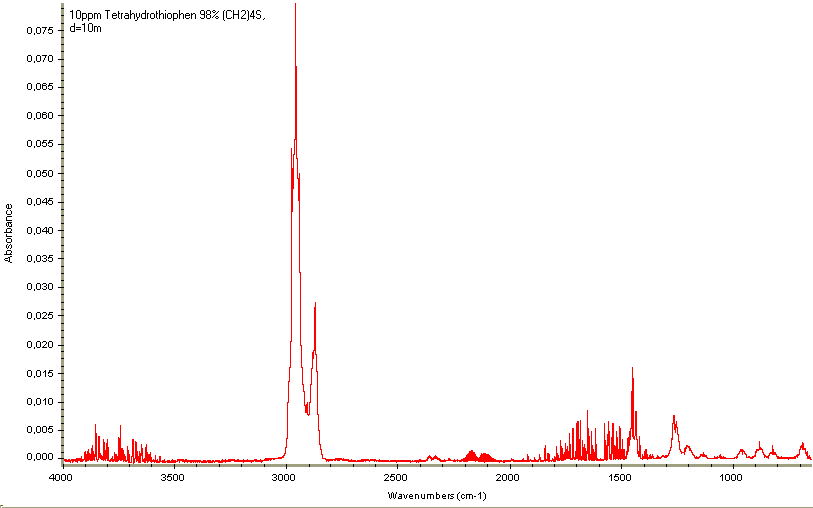

Tetrahydrothiophen (THT) - C4H8S

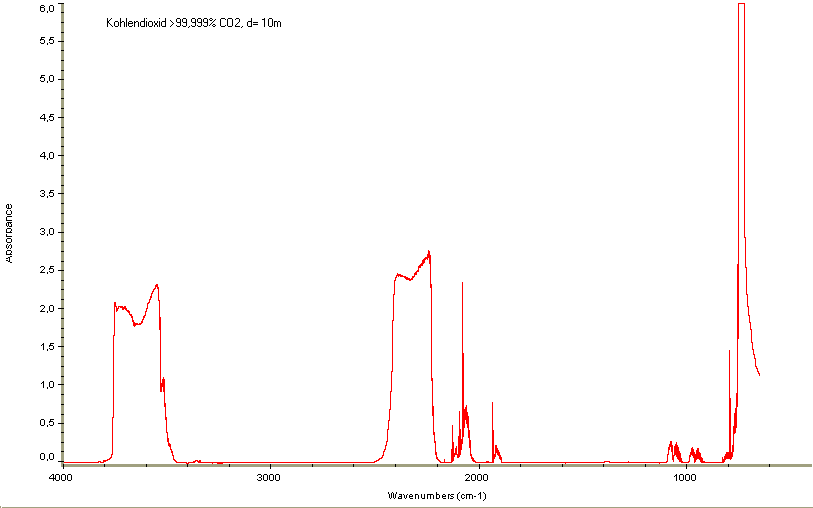

Kohlendioxid - CO2
Toluol (Methylbenzol) - C6H5(CH3)
Kohlenmonoxid - CO
Trichlormethan (Chloroform) - CHCL3
